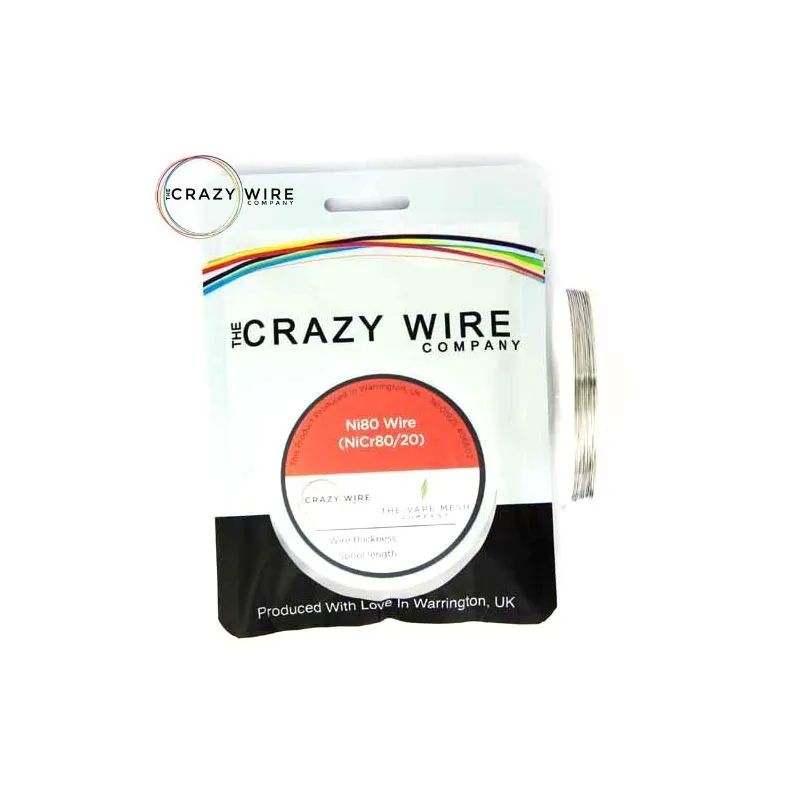

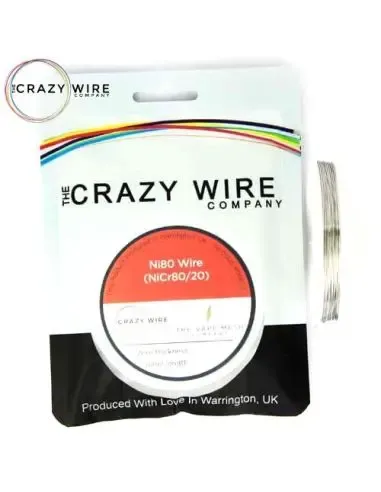

THREAD CRAZY WIRE NI80 0.12MM/36GA 10M
In Stock
€3.22
Delivery on Thursday
Our Ni80 cables are soft, easy to operate and cut. Chromium nickel 80/20 is commonly used as heat treatment wire. In these times it has found popularity in the vaping industry for its high level of heat and electrical resistance. Nickel-chromium alloy is very suitable for applications that are subject to oxidation.
Length: 10 meters
Material: Ni80 Cr20
Related products
Wire Specification:
Diameter: 0.50 mm (510 microns and 24 AWG)
Ohms /m - 13.6
Diameter: 0.4 mm (400 microns, 26 AWG)
Ohms /m - 8.71
Diameter - 0.32 mm (320 microns - 28 AWG)
Ohms /m - 5.37
Diameter: 0.2 mm (200 microns - 32 AWG) - Very thin wire.
Ohms /m - 35.58
Diameter: 0.12 mm (120 microns and 36 AWG): very thin cable.
Ohms /m - 88.82Diameter: 0.08 mm (80 microns and 40 AWG): very thin cable.
Ohms /m - 216.70
Technical specification:
Ni - Rest
Cr - 20.0 - 23.0
Faith - <1.0
Max. Continuous element temperature service - 1200
Resistivity at 20oc - 1.09
Density (g/cm3) - 8.40
Thermal conductivity (KJ / m.h.oC) - 60.3
Line Expansion Coefficient - 18.0
Melting point (approx.) (OC) - 1400
Elongation in Rupture (%) -> 20
Micrographic structure - Austenite
Magnetic properties - non-magnetic
- Resistance Material
- Nichrone
